Name: Telescoping Lift Boom Trailer Frame Electrical Lift Portable
Brand: Shandong Haokun Heavy Industry Machinery Group Co., Ltd.
Availability: InStock

Home Products Mobile lifting platform

Telescoping Lift Boom Trailer Frame Electrical Lift Portable

Product Details:

Place of Origin:	Shandong, China
Brand Name:	OEM

Contact Now

Detailed Product Description

Condition:	New	Lift Drive / Actuation:	Hydraulic
Table Size:	CUSTOM	Applicable Industries:	Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Type:	Boom Lift	Product Name:	Self-propelled Curved Arm Lift
Keywords:	Hydraulic Vehicle-mounted Elevating Platform	Application:	Widely
Lift Drive:	Hydraclic	Load Capacity:	200kg
Lifting Height:	10-22 Meter	Lifting System:	Hydraulic Lift Cylinders
Operation Way:	Platform Operate	After Warranty Service:	Video Technical Support

We first consider the safety of use from the early stage of design

To ensure that you are foolproof during use

We've done a lot of security testing for this

Safety devices we have added for safe use
To protect your safety

Overload protection:	The hydraulic unit is equipped with an overload protection device. If overloaded, the hydraulic station will automatically release pressure and stop running.
Emergency stop:	In the event of an emergency, the elevator can be stopped immediately.
Emergency descent	There is an emergency lowering valve on each section of the pole. If there is a problem with the equipment, emergency lowering can be used.
Explosion-proof valve:	The hydraulic system is equipped with an explosion-proof valve to prevent the platform from suddenly falling when the oil pipe ruptures.
Safety sensor	When the platform is lowered, if it hits anything, it will stop to protect the cargo or operators.
Torque shaft	It adopts a torsion shaft design with good balance and comes with its own spring. When the ground is uneven, it will automatically level. After being powered on, it has its own electromagnetic brake.

We have 20 years of manufacturing experience in our factory, exporting our services to more than 50

countries and regions around the world, and OEM for many foreign brands. We always insist that

product quality is the lifeline of an enterprise and have been working hard for this

Security dual control

Dual control switch to avoid

accidental touch operation

Steel drag chain

More durable than plastic

products

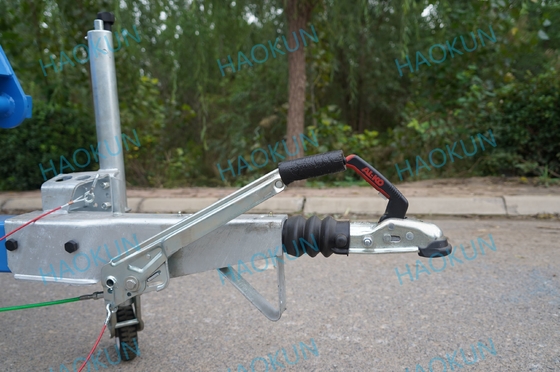

Imported braking system

Braking system imported from Italy

ALKO imported from Germany

LCD control system

Touch control system

Smoother human-computer

interaction and customizable

multi-language system

Stable hydraulic system

Listed company hydraulic system

good quality

Durable and long-lasting

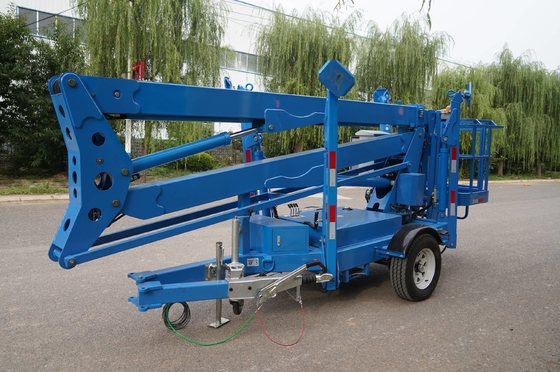

Foldable

Listed company hydraulic system

good quality

Durable and long-lasting

Convenient for work

Workbar with socket

Convenient to use electrical

tools for work

Model Number	dimension(mm)	lifting height(m)	working height(m)	platform size(mm)	Weight(ton)	loading capacity(kg)	Working radius(m)
THKB0.2-10	6645*2050	10	12	750*800	1.7	200	3
THKB0.2-12	6100*1700	12	14	750*800	1.8	200	3.5
THKB0.2-14	6500*1700	14	16	750*800	1.9	200	4
THKB0.3-16	6700*1700	16	18	1000*650	4.2	200	9.3
THKB0.4-18	6800*1700	18	20	1000*650	5.8	200	12
THKB0.4-20	7000*1700	20	22	1000*650	6.5	200	9.3
custom	custom	custom	custom	custom	custom	custom	custom

Our Factory

Exhibition display

cooperative client

FAQ

Q1. What about the delivery time? Answer: It usually takes about 10 working days after we receive the deposit. Q2. What kind of payment do you support? Answer: T/T, L/C, West Union, Alibaba Trade Assurance. T/T is usually. Q3. How to proceed with an order for the lift? Answer: Firstly, tell us your requirements, if you can send a photo of where you will use the lift, it will be better. Secondly, we send you our suggestions and quote according to the practical. Q4. How to transfer the lift machine? Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container. Q5. Is it OK to print my LOGO on the lift? Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO. Q6. How can I get the after-sales service? Answer: Contact us if you have any questions or need professional support. We will try to solve your problem in 24 hours and arrange the delivery of spare parts in 48 hours. (Please make sure to communicate with me before paying directly, because the price in the title is just a deposit, not the full amount! !)
